E-mpulse R20, is a folding device, assisted guidance by an assistant, which fits most wheelchairs (box frame, frame tube diameter 22-28 mm).
Easy to transport, handle and store.
The snap-on fastening system makes it possible to immobilize the cart for transport without any tools. Only a small mounting pin remains with the cart, ensuring a lightweight and aesthetically pleasing design.
Modern design, quick disassembly. Simple and safe transportation possible without disconnecting wires.
Adjustable speed on three levels-maximum 5 km/h, for this 250 W motor . Simple on/off – pressing a button drives the device. The 5.8 Ah lithium-ion battery, with an assured two-year warranty, allows the user to drive 15 kilometers. The R20 booster also comes with an extended motor warranty (3 years).

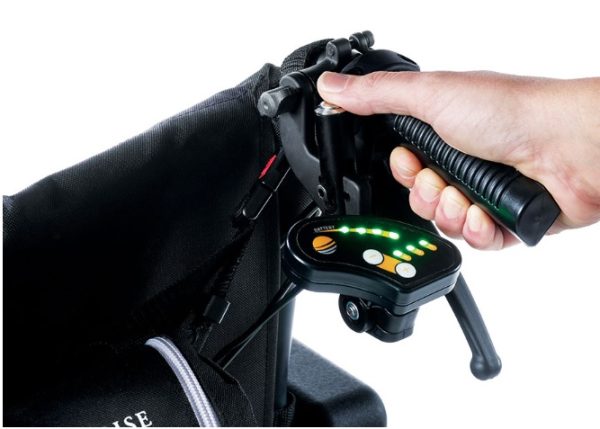

The easy-to-read display shows the battery capacity and speed range.
Autonomous driving is possible, without dismantling the device, which gives the user a sense of independence.
Technical Data:
Seat width: 320 – 600 mm
Maximum range: 15 km
Speed selection: 5 km/h (adjustable: 2/3.7/5 km/h)
Batteries: 5.8 Ah / 36 V (209 Wh) – Lithium-Ion
Maximum driveway angle: 10° / 18%
Maximum curb height: 50 mm
Electronics: 100-240 V AC charger: 36 V & 1.35 A
Maximum user weight: 190 kg (User and Trolley)
